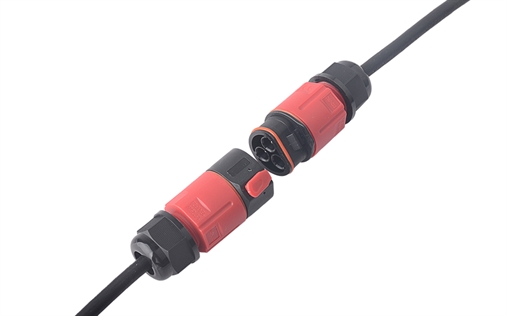

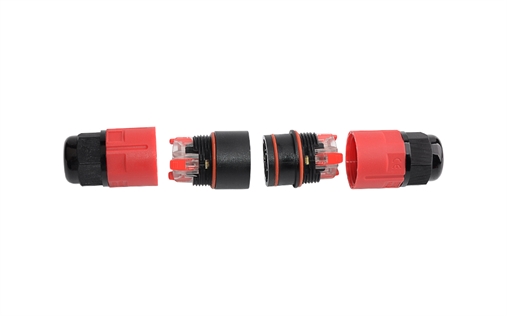

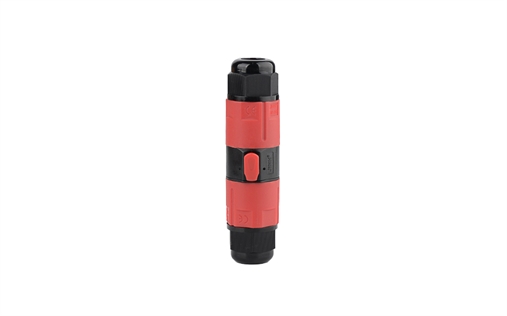

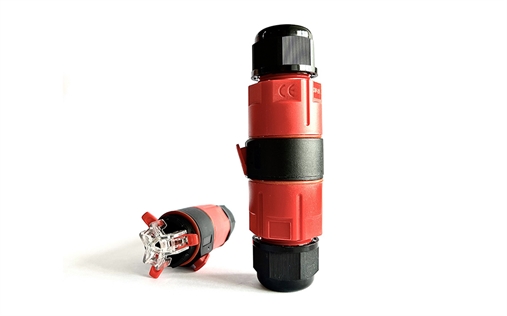

293 三芯对插快接防水连接器
Introduction to cnp293
1. Waterproof grade: IP68
2. Material: PA66 silicone rubber hs-21x1 (3-8)
3. Multi core type: 3 cores
4. Working temperature: - 40 ℃ ~ 105 ℃
5. Wiring mode: spring clip crimping
6. Rated current: 16A
7. Rated voltage: 250V
8. Withstand voltage: 1500V
The main features are as follows
1. Simple nut rotation fixation;
2. The cable core wire is connected with the nickel plated copper terminal, which can be loaded and unloaded quickly, and the male and female parts are inserted into each other.
3. Nylon material, suitable for all kinds of high and low temperature conditions;
4. The size is moderate;
5. Assembly and docking, easy to replace, easy to disassemble and use solid terminal;
在线询价
1. Waterproof grade: IP68
2. Material: PA66 silicone rubber hs-21x1 (3-8)
3. Multi core type: 3 cores
4. Working temperature: - 40 ℃ ~ 105 ℃
5. Wiring mode: spring clip crimping
6. Rated current: 16A
7. Rated voltage: 250V
8. Withstand voltage: 1500V
The main features are as follows
1. Simple nut rotation fixation;
2. The cable core wire is connected with the nickel plated copper terminal, which can be loaded and unloaded quickly, and the male and female parts are inserted into each other.
3. Nylon material, suitable for all kinds of high and low temperature conditions;
4. The size is moderate;
5. Assembly and docking, easy to replace, easy to disassemble and use solid terminal;
6. Special designed clamping die and rubber parts, super tensile strength, waterproof, dustproof, salt, acid, alkali, alcohol, grease and general solvents
