接线说明EXPLAIN CONNECTION
1、用螺丝刀开启弹簧:螺丝刀贴方孔内侧壁插入并撬动使弹簧打开(从圆孔中可以看见)。然后，顺势将螺丝刀插到底，这时螺丝刀停在方孔中，弹簧则完全打开。
2、导线的剥线长度要按照说明书上指定的长度做。
3、向圆孔中入线时，若作用多股线则绝不能使之分叉。要使多股线全部入孔。
4、导线的绝缘外皮要进入端子的圆孔，例如，对于2.5mm2或4mm2导线而言，绝缘外皮要进入2-3mm。若是更粗的导线，绝缘皮进入的要更深。
5、螺丝刀拔出后，线即接好。用手轻拉导线，若拉不出即接好。
6、最后作一下检查，可用手将导线在接线孔处压弯，要求此时不能看到铜丝。
[此说明对该样本中所有具有笼式弹簀夹持单元(CAGE CLAMP)的器件有效。]
1.Open the spring with a screwdriver: insert the screwdriver along with the inner sidewall of square hole to open the spring (you can observe from the round hole). Then insert the screwdriver to the bottom, thus the spring is fully opened while the screwdriver is remained in the square hole.
2. Stripping length of the conductor should be made according to the operating manual.
3. When leading wire into the round hole, if it is stranded wire, please make sure that it hasn't been branched off The stranded wire should be led into the hole wholly.
4.Insulation sheath of the conductor should be led into the round hold of terminal, for example, for a conductor of2.5mm2 or 4mm2, their insulation sheath should be led in for 2-3mm. For thicker conductors, the insulation sheath should be led in deeper.
5. While withdrawing the screwdriver, the conductor has been finished wiring. Draw the conductor gently, ifit cannot be drawn out, it means it has been well wired.
6.Make a final examination, you can press and bend the conductor at the connection hole, and it is in good condition if you cannot find the copper wire.
[This instruction is ffective for all CAGE CLAMPS in the catalogue.]

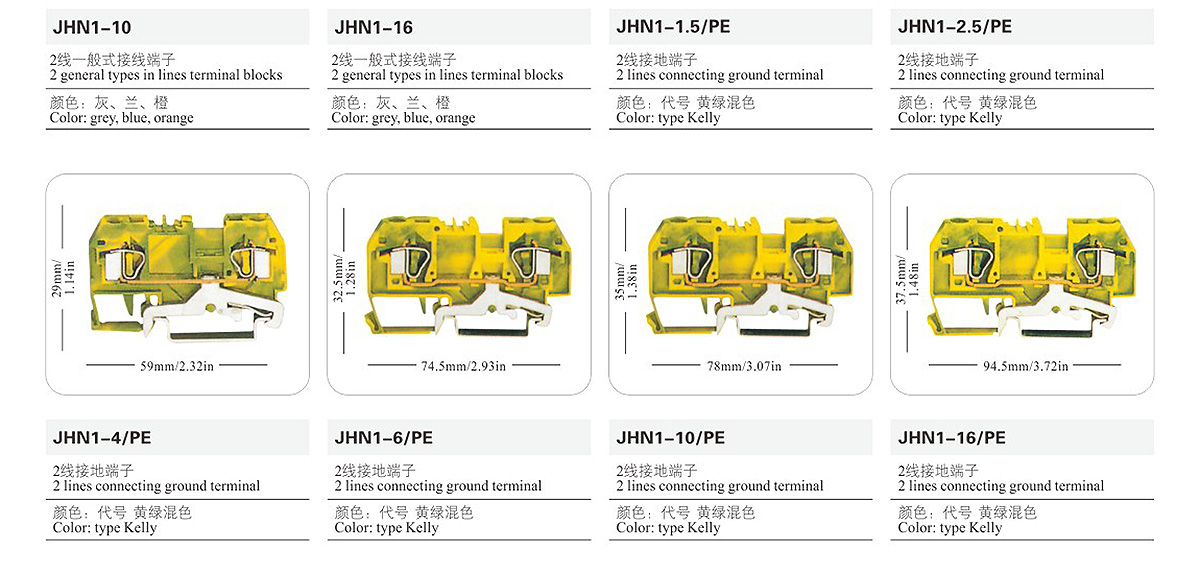

JHN1正面、弹簀式接线端子
JHN1 OBVERSE、SPRING TYPES TERMINAL BLOCKS
