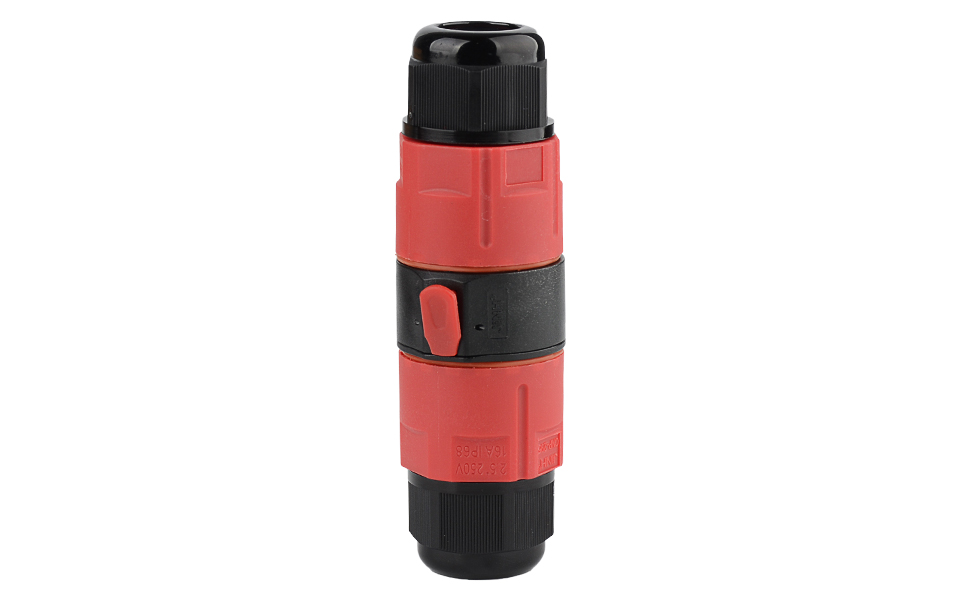

CNP295 五芯对插照明连接器
Introduction to cnp2951. Waterproof grade: IP682. Material: PA66 silicone rubber hs-21x1 (3-8)3. Multi core type: 5 cores4. Working temperature: - 40 ℃ ~ 105 ℃5. Wiring mode: spring clip crimping6. Rated current: 16A7. Rated voltage: 250V8. Withstand voltage: 1500VThe main features are as follows1. Simple nut rotation fixation;2. The cable core wire is connected with the nickel plated copper terminal, which can be loaded and unloaded quickly, and the male and female parts are inserted into each other.3. Nylon material, suitable for all kinds of high and low temperature conditions;4. The size is moderate;5. Assembly and docking, easy to replace, easy to disassemble and use solid terminal;6. Special designed clamping die and rubber parts, super tensile strength, waterproof, dustproof, salt, acid, alkali, alcohol, grease and general solvents
CNP29系列插拔式防水连接器防水等级IP68，可接线平方范围0.5-2.5平方，产品分三芯和五芯两种规格。产品具有快速连接式功能，无需螺丝金属连接，只需要打开手柄插入导线后按下手柄复原即可连接，产品用途广泛，替代性强，可用于户内户外工程设备作业，在工程作业中有插拔需求的均可使用本产品，本产品使用便简，安全可靠。
